KVM 15


Click here.

KVM 15 series monoblock type hydraulic valves have a flow rate of 70 lt/min and are being manufactured from 1 to 6 spools. All Spools are hard crome plated.

Technical Characteristics
Sections 1 to 6
Nominal Flow 70 lt./min
Max. Operating Pressure 350 bar
Max. Back Pressure 30 bar
Recommended Oil Viscosity 5.4 - 11.4 CST (100 C° )
Recommended Oil Filtering Max 30 micron
Paralle - Series Circuit
Adjust Direct Operated Relief Valve
Load Hold Check Valve
Single - Double Valve

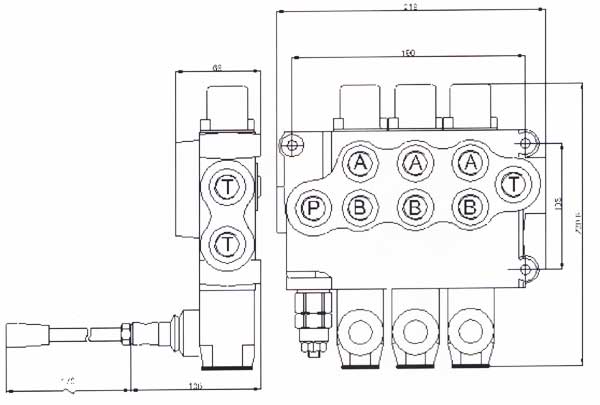

Drawing

Click here.

Type
L (mm)
K (mm)
W (kg)
KV151
100
129
5.7
KV152
145
174
8.2
KV153
190
219
11
KV154
235
264
13.8
KV155
280
309
16.6
KV156
325
354
19.4

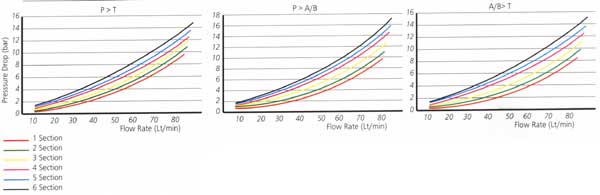

Chart

Click here.

Standart Threads
P
A / B
T
3/4"
1/2"
3/4"
1/2"
1/2"
1/2"
