KVM 10


Click here.

KVM 10 series monoblock type hydraulic valves are being produced from 1 to 6 spools at 3/8" and 1/2" BSP. All Spools are hard crome plated.

Technical Characteristics
Sections 1 to 6
Nominal Flow 40 lt./min and 45 lt./min.
Max. Operating Pressure 350 bar
Max. Back Pressure 30 bar
Recommended Oil Viscosity 5.4 - 11.4 CST (100 C° )
Recommended Oil Filtering Max 30 micron
Paralle - Series Circuit
Adjust Direct Operated Relief Valve
Load Hold Check Valve
Single - Double Valve

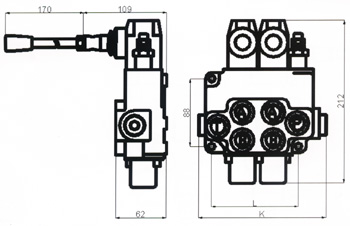

Drawing

Click here.

Type
L (mm)
K (mm)
W (kg)
KV101
73
126
4.2
KV102
114
166
6.4
KV103
154
206
8.5
KV104
194
246
10.7
KV105
234
286
12.9
KV106
274
326
15
Chart

Click here.

Standart Threads
P
A / B
T
3/8"
3/8"
3/8"
1/2"
1/2"
1/2"
