KVM 05


Click here.

KVM 05 is a single spool monoblock valve. Produced at 3/8" BSP and for a maximum working pressure of 250 Bar and 35 lt/min of flow. Spools are hard crome plated.

Technical Characteristics
Sections 1
Nominal Flow 35 lt./min
Max. Operating Pressure 250 bar
Max. Back Pressure 30 bar
Recommended Oil Viscosity 5.4 - 11.4 CST (100 C° )
Recommended Oil Filtering Max 30 micron
Paralle - Series Circuit
Adjust Direct Operated Relief Valve
Load Hold Check Valve
Single - Double Valve

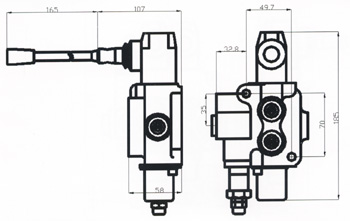

Drawing

Click here.

Type
L (mm)
K (mm)
W (kg)
KVM051
50
100
2.1

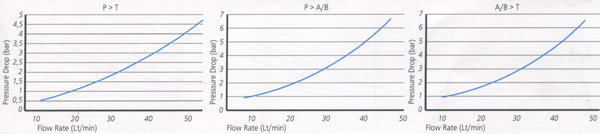

Chart

Click here.

Standart Threads
P
A / B
T
3/8"
3/8"
3/8"
