KV 20


Click here.

KV 20 series valves are available from 1 to 9 sections. Manufactured for a flow rate of 150 lt./min and z maximum working pressure of 315 BAR; our Kv 20 series valves are designed for heavy duty tasks. Antishock and anticavitation valves are applicable. All sections include load hold check valve. All Spools are hard crome plated.

Technical Characteristics
Sections 1 to 9
Nominal Flow 150 lt./min
Max. Operating Pressure 315 bar
Max. Back Pressure 30 bar
Recommended Oil Viscosity 5.4 - 11.4 CST (100 C° )
Recommended Oil Filtering Max 30 micron
Paralle - Series Circuit
Adjust Direct Operated Relief Valve
Load Hold Check Valve
Single - Double Valve

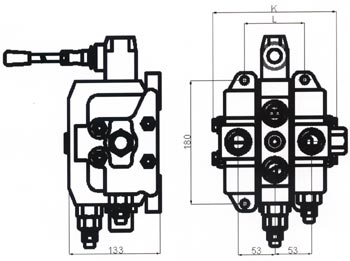

Drawing

Click here.

Type
L (mm)
K (mm)
W (kg)
KV201
88
180
14.8
KV201
137
229
22.5
KV201
186
278
30.2
KV204
235
327
37.9
KV205
284
376
45.6
KV206
333
425
53.3
KV207
382
474
58
KV208
431
523
65.7
KV209
480
572
73.4

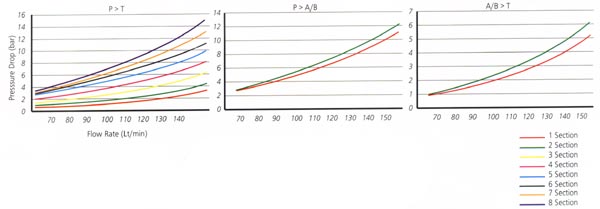

Chart

Click here.

Standart Threads
P
A / B
T
3/4"
3/4"
3/4"
