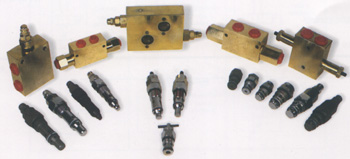

Components
Click here.

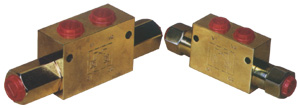

Pilot control check valve
Type
Max Flow
Threads
Dimension
Pilot Ratio
( I-min )
V1-V2-C1-C2
A
A
A
A
A
A
APC38
35
3/8" GAS
80
50
30
18
35
68
4/1 - 3/1
APC12
50
1/2" GAS
90.5
60
35
42
40
73
4/1 - 3/1
APC34
100
3/4" - 16 UNF
130
80
60
38.5
61
110
4/1 - 3/1

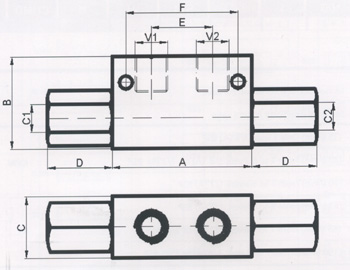

Drawing
