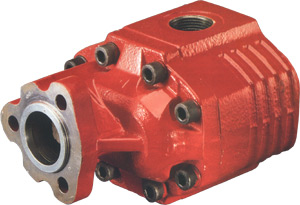

30 SERIES 51 LITER GEAR PUMPS
|
30.51 PUMP TYPE
|

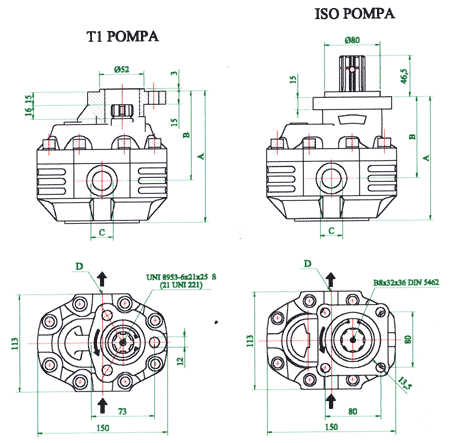

T1
|
ISO
|
|
| A ( mm ) |
175.5
|
187
|
|
| B ( mm ) |
112.5
|
124
|
|
| Weight ( kg ) |
10.5
|
12.5
|
|
| C ( Oil Inlet ) |
R 1"
|
||
| D ( Oil Outlet) |
R 1"
|
||
| Displacement ( cm3 / dev. ) |
51.59
3.15 |
||
| Max.
Pressure ( Bar - Psi ) |
P1 |
240 - 3480
|
|
| P2 |
260 - 3770
|
||
| P3 |
280 - 4060
|
||
| Intermitent Max. H�z ( min-1) | At P2 Pressure |
2500
|
|
| Without load |
3500
|
||
| Min. Speed ( min-1) |
300
|
||
| RPM / Min. n-[min-1] P1
= Max. contionuous pressure P2 = Max. intermitten
pressure P3 = Max. peak pressure |
|||
