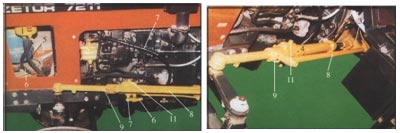

- Oil reservoir
- Hydraulic steering oil pump
- Assemble mount
- Assemble valve and piston
- 5/8 R6 hose from reservoir to oil pump. Fasten hose
clamps
- Return hose from lift to reservoir 3 / 8 R6
- Pressure hose from oil pump to lift 5/16 R1
- Assemble tie rod
- After that center the valve shaft and fasten with M8
bolts
- Use special sae 10 or 20 (1 lt.) start engine, check
oil level and add some more id necessary, check fastening bolts and
hoses after 1 week
- The adjusting screw og the pressure valve
